Variable Flip Angle

Config name: model: vfa_t1 BIDS suffix; VFA Method family; T1 Relaxometry Acquired volumes; 2 Fit granularity; voxelwise

Fits the longitudinal relaxation time T1 from spoiled gradient-echo images acquired at two or more excitation flip angles and a single repetition time. Dividing the steady-state signal by the sine of the flip angle linearizes the model, so T1 and the equilibrium magnetization follow from an ordinary least-squares line through the transformed data — a closed-form solve, with no iteration. That transform also divides the noise, which biases the estimate at low SNR, so a nonlinear fit_type is available that minimises residuals on the signal equation itself. A transmit field map, when supplied, scales the nominal flip angles to the actual ones before the fit.

Signal model¶

S(\alpha) = M_0 \sin(\alpha)\,\frac{1 - e^{-T_R/T_1}}{1 - \cos(\alpha)\,e^{-T_R/T_1}}

(1)

Symbol	Quantity	Unit
`M0`	Equilibrium magnetization	—
`T1`	Longitudinal relaxation time	s

What the model reads¶

A series of 2 volumes indexed by FlipAngle. Volumes are matched to these identities by value, so reordering the acquisition yields an identical fit.

#	FlipAngle
1	3
2	20

Where the protocol comes from¶

In a BIDS dataset these values are resolved for you:

Protocol parameter	Source	Key	Resolved
`FlipAngle`	sidecar field	`FlipAngle`	per volume
`RepetitionTimeExcitation`	derived from sidecar metadata	—	whole collection

Inputs¶

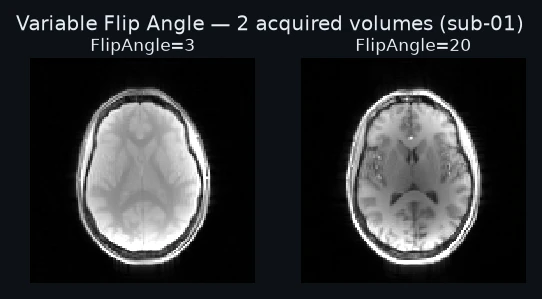

Figure 1:The 2 acquired volumes, each labeled with the identity the model reads it by.

Auxiliary maps¶

Input	Required	BIDS suffix	CLI flag
`B1map`	optional	`TB1map`	`--b1map`

Outputs¶

Map	BIDS suffix	Unit	Fit bounds	Fitted
`T1`	`T1map`	s	1e-05 … 5	free
`M0`	`M0map`	—	0 … 6000	free

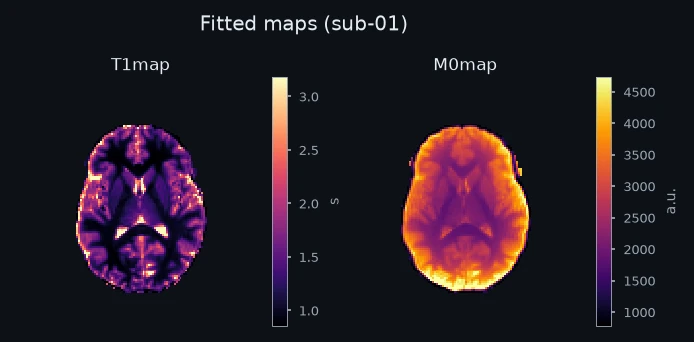

Figure 3:Fitted maps for one example subject.

Usage¶

BIDS

Without BIDS

Simulation

Browser

The acquisition comes from the sidecars, so recipes/bids/vfa_t1_config.yaml carries only algorithm options:

model: vfa_t1

# BIDS input: FlipAngle and RepetitionTimeExcitation are read from the JSON
# sidecars via the model's protocol_schema(), so neither is declared here.

# Fit algorithm (an option, not BIDS metadata): `linear` is qMRLab's closed-form
# Fram linearization; `nonlinear` minimises residuals on the signal equation by
# Levenberg-Marquardt, avoiding the bias the linearizing transform puts into the
# noise at low SNR.
fit_type: linear

# BIDS mask selection — disambiguates which mask in the dataset to apply.
mask:
  desc: brain

qmrust fit --bids-dir ds-mydata \
  --config recipes/bids/vfa_t1_config.yaml --output-dir out

Fitted maps are written as BIDS derivatives:

out/derivatives/qmrust/sub-01/anat/
  sub-01_T1map.nii.gz
  sub-01_T1map.json
  sub-01_M0map.nii.gz
  sub-01_M0map.json

No sidecars, so recipes/non-bids/vfa_t1_config.yaml declares the acquisition itself:

model: vfa_t1

# non-BIDS: protocol from this file; mask via --mask
# Flip angles in degrees (BIDS-MRI convention), times in seconds (BIDS/SI).
# The linearization assumes one repetition time for the whole series.
flip_angles:
- 3
- 20
repetition_time: 0.015

# Fit algorithm. `linear` (default) is qMRLab's closed-form Fram linearization;
# `nonlinear` refines it with Levenberg-Marquardt on the signal equation, which
# avoids the bias the linearizing transform puts into the noise at low SNR.
fit_type: linear

qmrust fit --data data.nii.gz --mask mask.nii.gz \
  --config recipes/non-bids/vfa_t1_config.yaml \
  --b1map <file> \
  --output-dir out

See Fitting without BIDS.

model: vfa_t1

# Simulation: the acquisition comes from this file. Flip angles in degrees
# (BIDS-MRI convention), times in seconds (BIDS/SI).
flip_angles:
- 3
- 20
repetition_time: 0.015

fit_type: linear

# Ground truth: white matter at 3 T, T1 near 1 s.
sim:
  params: { T1: 1.0, M0: 1000.0 }
  noise: { type: rician, snr: 100.0 }
  seed: 0
  trials: 100
  sweep: { param: T1, start: 0.4, stop: 3.0, steps: 10 }
  distributions:
    T1: { mean: 1.0, std: 0.2 }

qmrust sim signal       --config recipes/sim/vfa_t1_sim.yaml --output signal.json
qmrust sim single-voxel --config recipes/sim/vfa_t1_sim.yaml --output sv.json
qmrust sim sensitivity  --config recipes/sim/vfa_t1_sim.yaml --output sens.json
qmrust sim montecarlo   --config recipes/sim/vfa_t1_sim.yaml --output mc.json

See Simulation.

The same core, compiled to WebAssembly:

import init, { fit_volume } from './pkg/qmrust_wasm.js';
await init();
const maps = fit_volume(configYaml, data, [nx, ny, nz, nt],
                        JSON.stringify(volumeIds), mask, '{}');

Try it on real data in the playground, or read Browser & wasm.

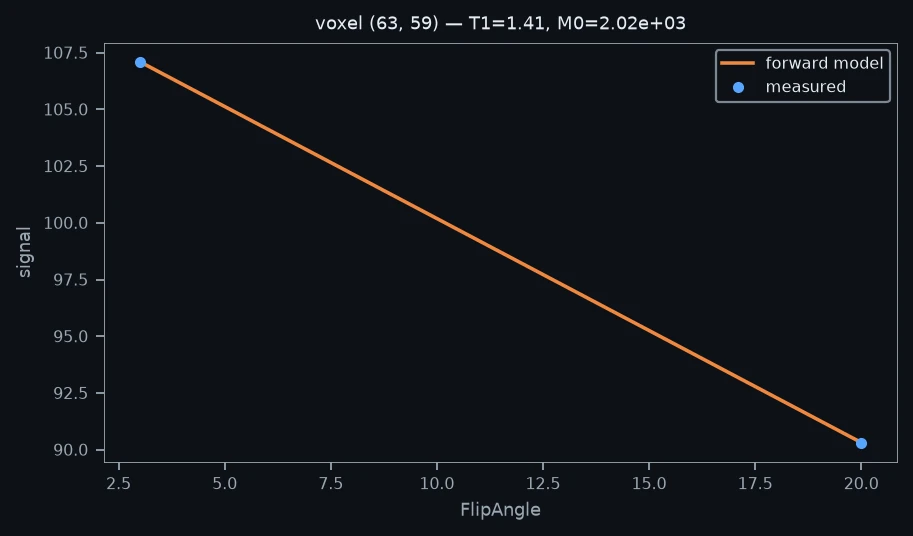

Figure 4:One voxel’s measured data with the model’s forward signal at the fitted parameters. The curve is computed by the same Rust code that does the fitting.

Implementation¶

model.rs — the Model implementation: measurement contract, protocol schema, BIDS outputs.
fit.rs — the numerical fit.
config.rs — configuration and validation.

References¶

Fram et al. (1987)

References¶

Fram, E. K., Herfkens, R. J., Johnson, G. A., Glover, G. H., Karis, J. P., Shimakawa, A., Perkins, T. G., & Pelc, N. J. (1987). Rapid calculation of T1 using variable flip angle gradient refocused imaging. Magnetic Resonance Imaging, 5(3), 201–208.
